- EASY100 A15 Slotted
- EASY100 B125 Galvanized steel heel safe mesh
- EASY100 C250 Stainless steel 6mm slot
- EASY100 C250 Ductile Iron 13mm slot
- EASY100 B125 Ductile iron mesh
- EASY100 C250 Galvanized Steel square mesh

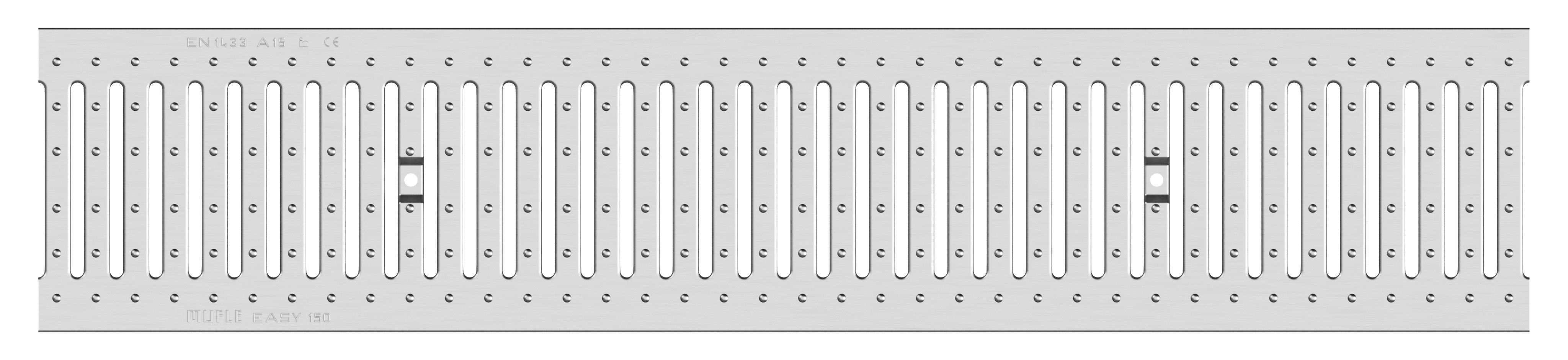

- EASY150 A15 Slotted

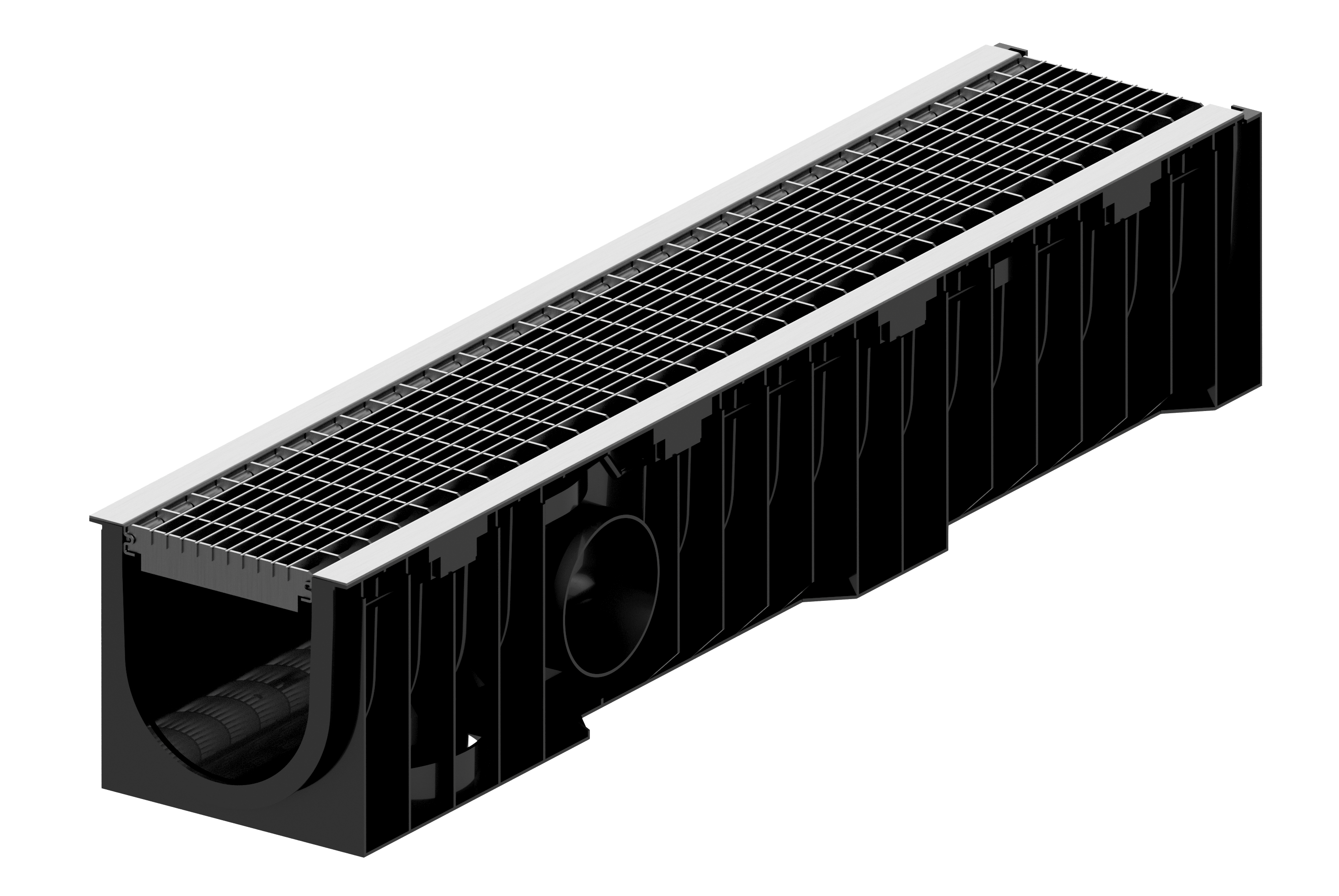

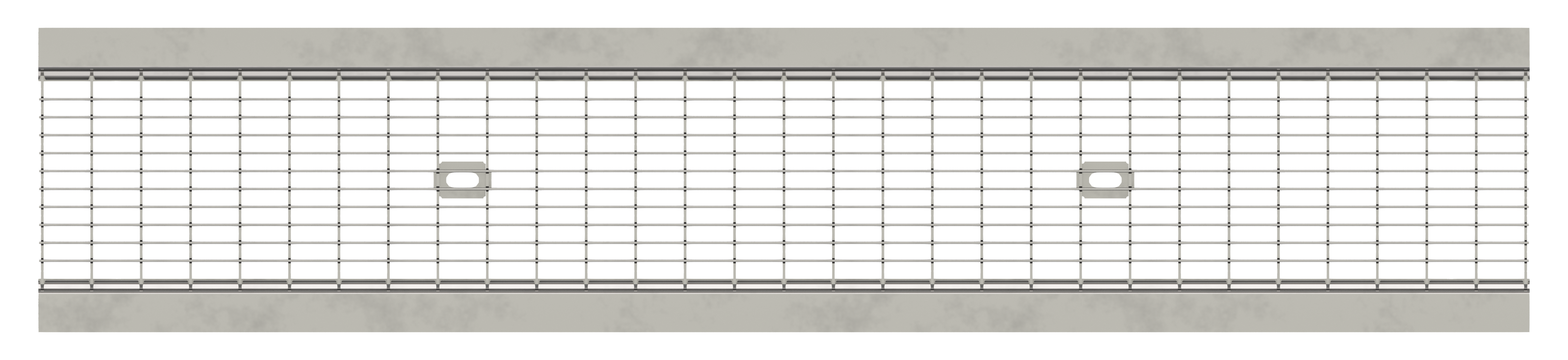

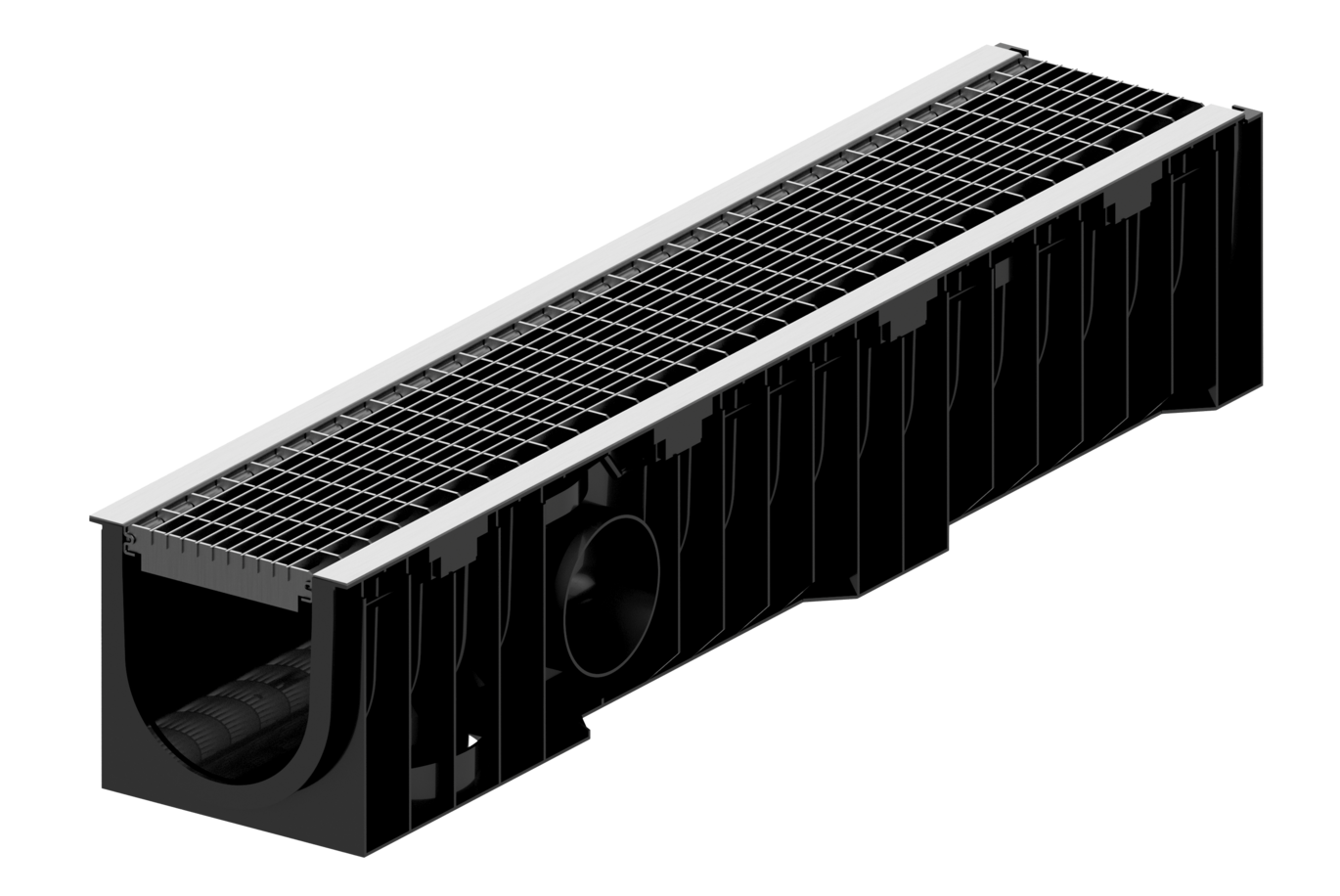

- EASY150 B125 Galvanized steel heel safe mesh

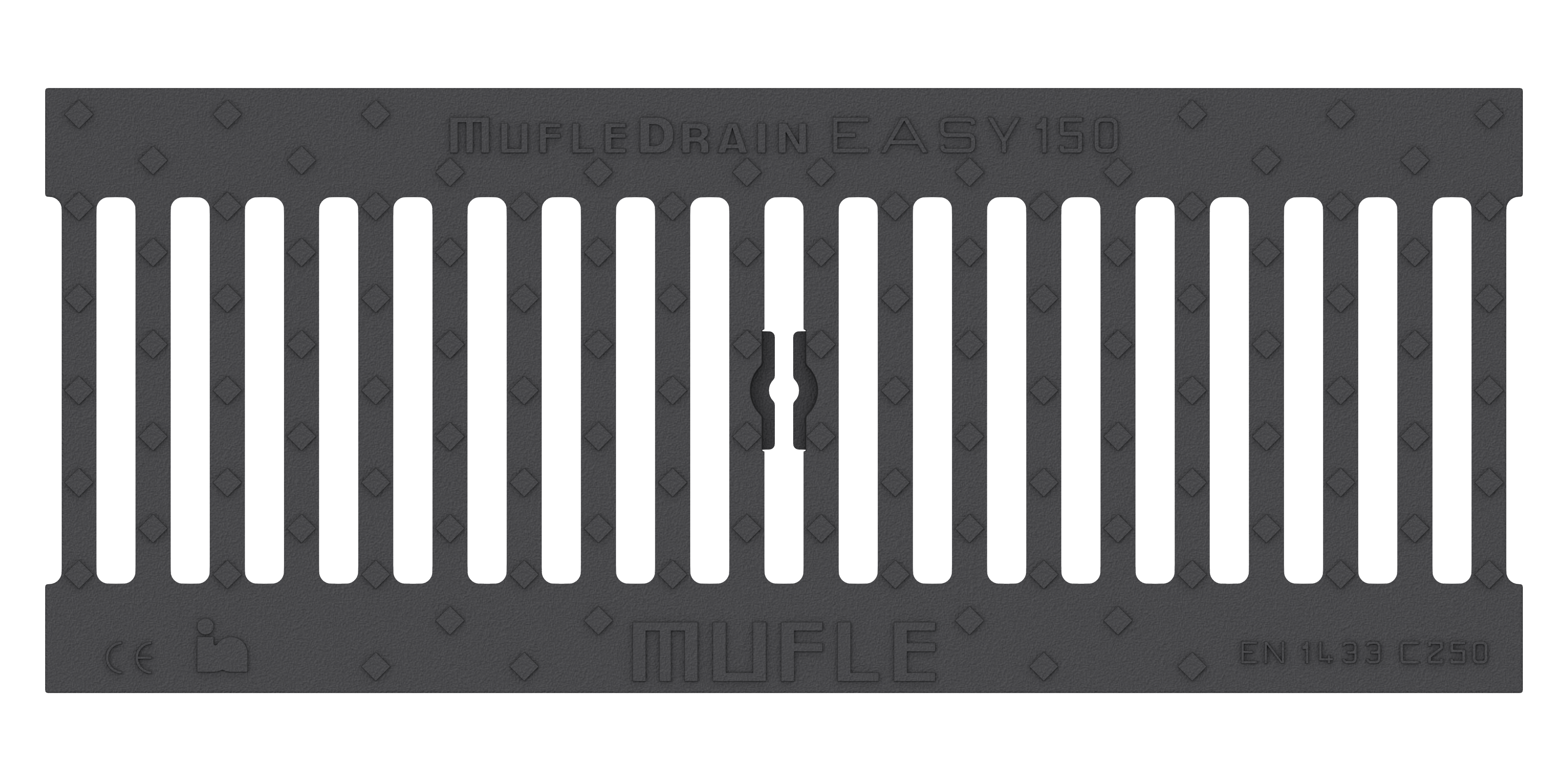

- EASY150 C250 Ductile Iron 13mm slot

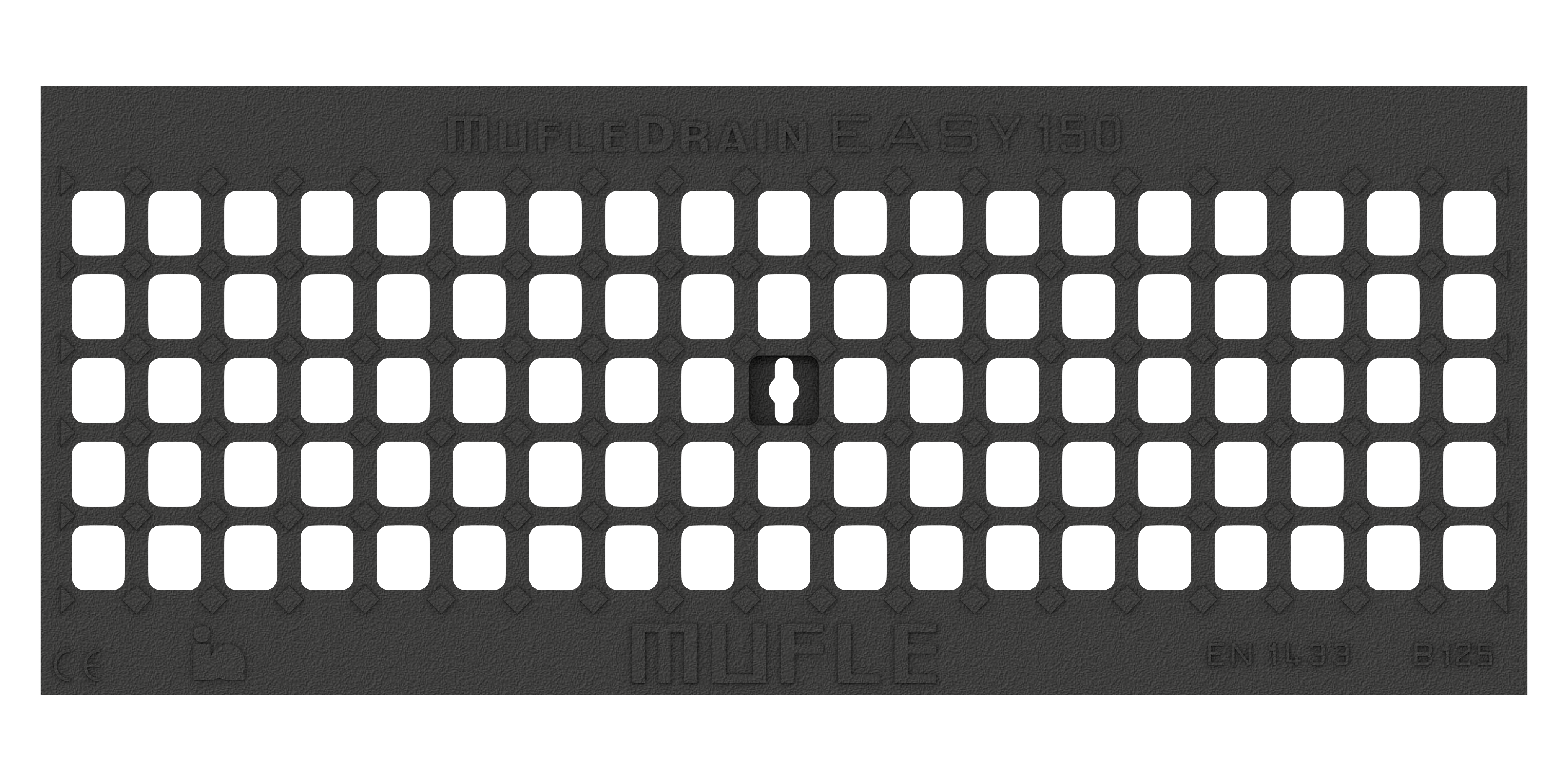

- EASY150 B125 Ductile Iron mesh

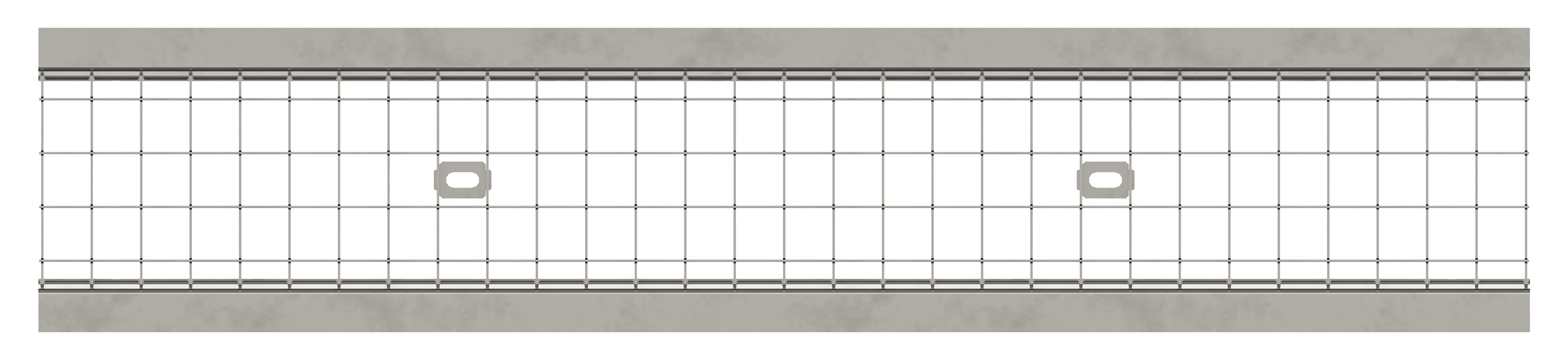

- EASY150 B125 Galvanized steel square mesh
- EASY200 A15 Slotted
- EASY200 B125 Galvanized steel heel safe mesh
- EASY200 C250 Stainless Steel 13mm slot
- EASY200 B125 Ductile Iron mesh
- EASY200 B125 Galvanized steel square mesh
MUFLE EASY

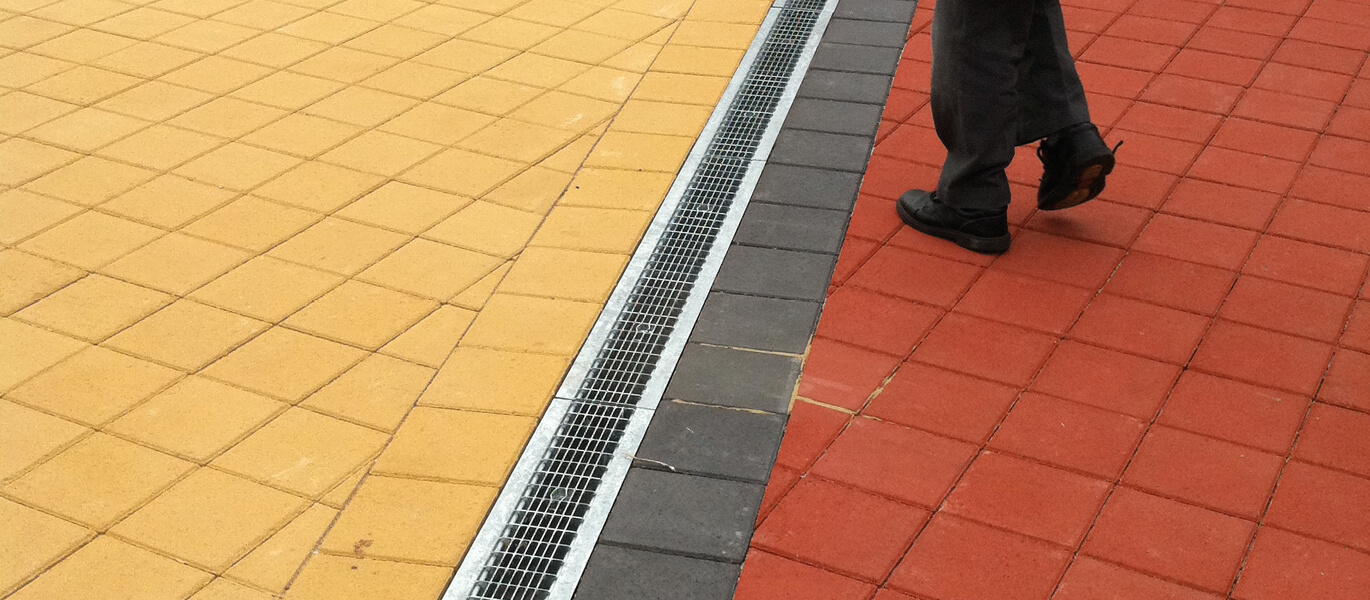

The installation in residential contexts

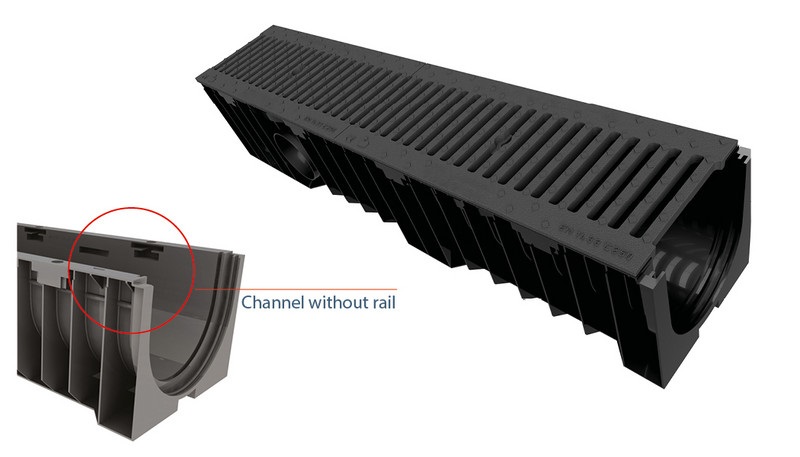

MUFLE EASY is the linear drainage system completely made of HD-PE with no rails.
The absence of rail ensures that the grating completely covers the channel and allows a drainage line installation without interruptions or discontinuities; this, many times, increases the aesthetics of installation in architectural projects and contexts.
The absence of any rail is a plus when it gets to height reduction in difficult installation sites and makes it possible to install the channel in all areas with reduced excavation depth.
MUFLE EASY Technical information
Main features
- Channel body completely made of plastic
- The grating covers completely the channel body
- 3 different internal widths: 100, 150, 200 mm are available
- Sump unit with foul air trap
- With side and vertical knockouts
- Vertical outlet kit Ø100 and Ø110 mm for channels H55 and H80 mm
- Bolt and bar fixing system for the gratings.
- Special pieces for corners, “T” couplings and cross couplings are available
- End-caps or end-caps with outlets
Typical applications
- Domestic and civil use
- Pedestrian areas
- Cycle paths
- Gardens
- Sports facilities
- Terraces and flat roofs
- Multi-level car parking
