MUFLE Element
HD-PE channel with ductile iron frame with gratings

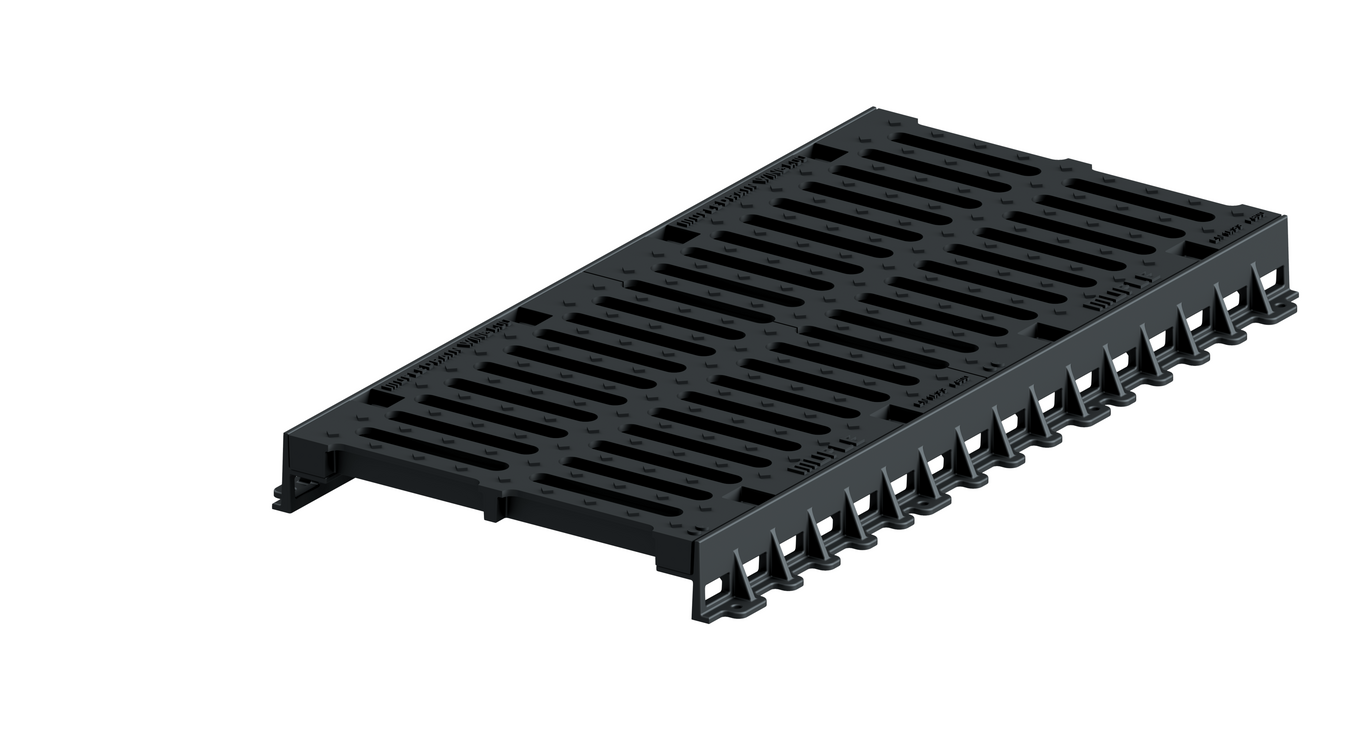

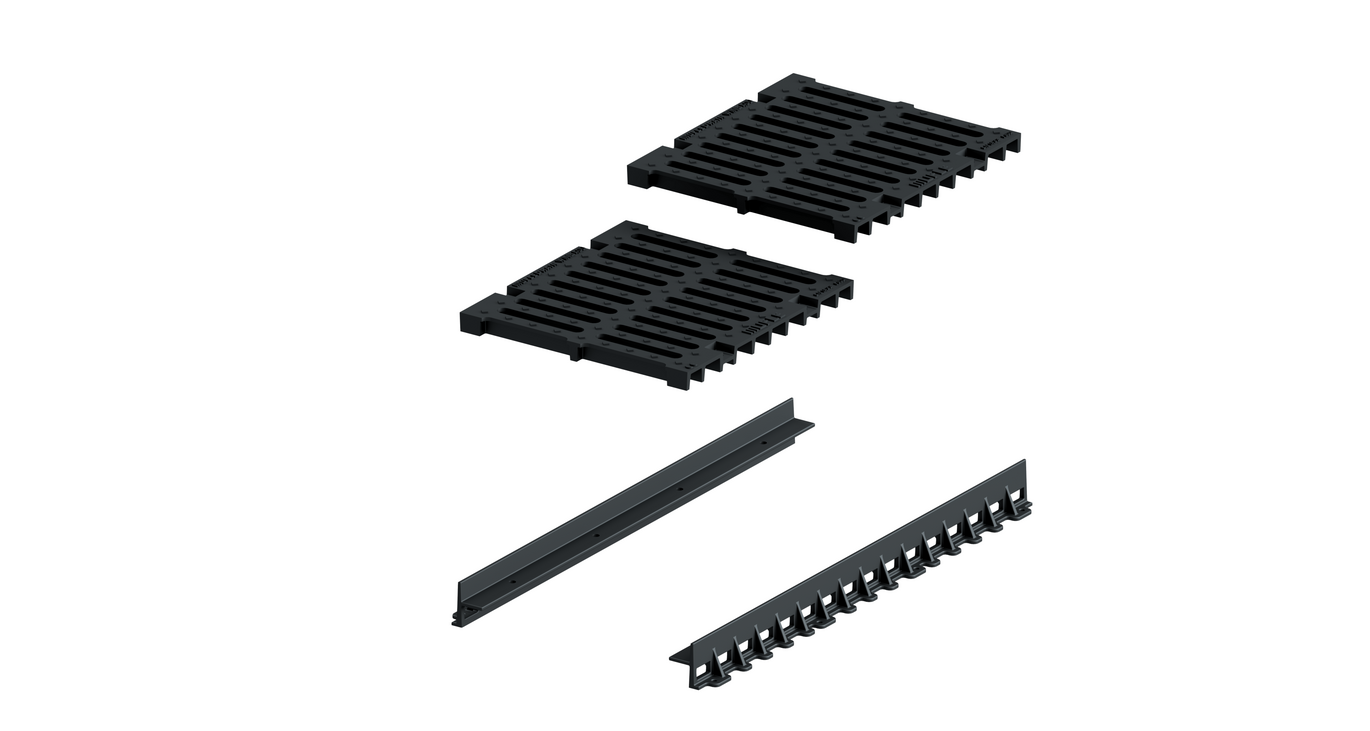

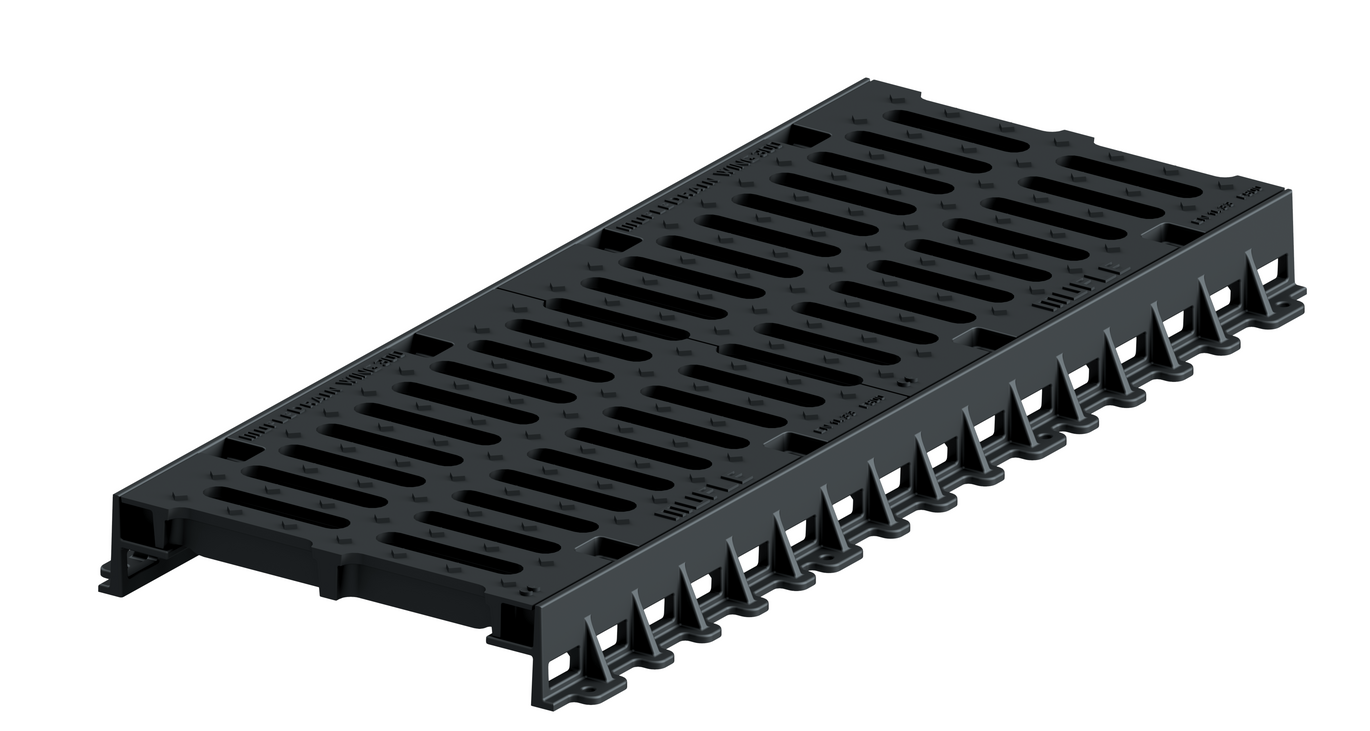

MUFLE Element consists of two cast frames connected with gratings from the WING NW300/400 series in load classes D400 to F900.
The connection between frame and grating is ensured by 8 M12 steel bolts per meter.
The grip of the module on the rear-fill concrete is obtained by the presence of large side sections in the frame. The wide surface area ensures that the system is stable and easy to install.
MUFLE Element Technical information
Main features
- Cast iron frames that are resistant to weather conditions, temperature fluctuations, corrosion, and freeze-thaw cycles
- The system consists of 1 MT long elements and is therefore very light and easy to handle, which greatly simplifies installation
- 0.5-meter gratings with certified loading tests
- The fixing of each grating is ensured by 4 M12 bolts
- Large hydraulic capacity of the gratings; very important parameter for the overall hydraulic balancing
Typical applications
- Airports
- Ports and harbors
- Logistics centers
- Heavy truck parking areas
- Military areas and bases
- Bus terminals
MUFLE ELEMENT Installation
MUFLE Element is delivered assembled and ready for installation.
It is recommended to cover the manufactured product with a plastic sheet so that no cement residue is left on its surface during the installation process.
The positioning of the modules is done above the cast-in-place channel by aligning it with the finished paving level.
The concrete used must be of very good quality (a C30/37, X0 according to EN 206-1 is recommended) and laterally must be vibrated to evenly fill the large lateral spaces required to achieve good fill. Once the backfill with concrete is finisched, the plastic sheet can be removed.
