MUFLE VIP, drainage channels

MUFLE VIP
Flexibility of the channel system, wide variety of gratings

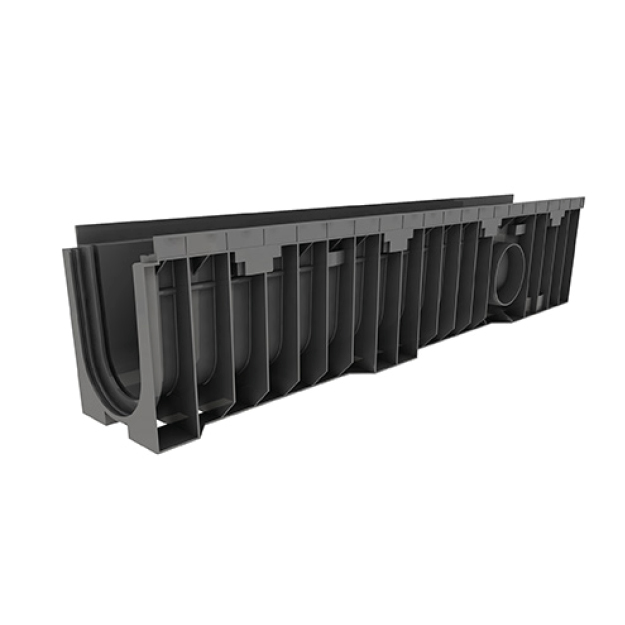

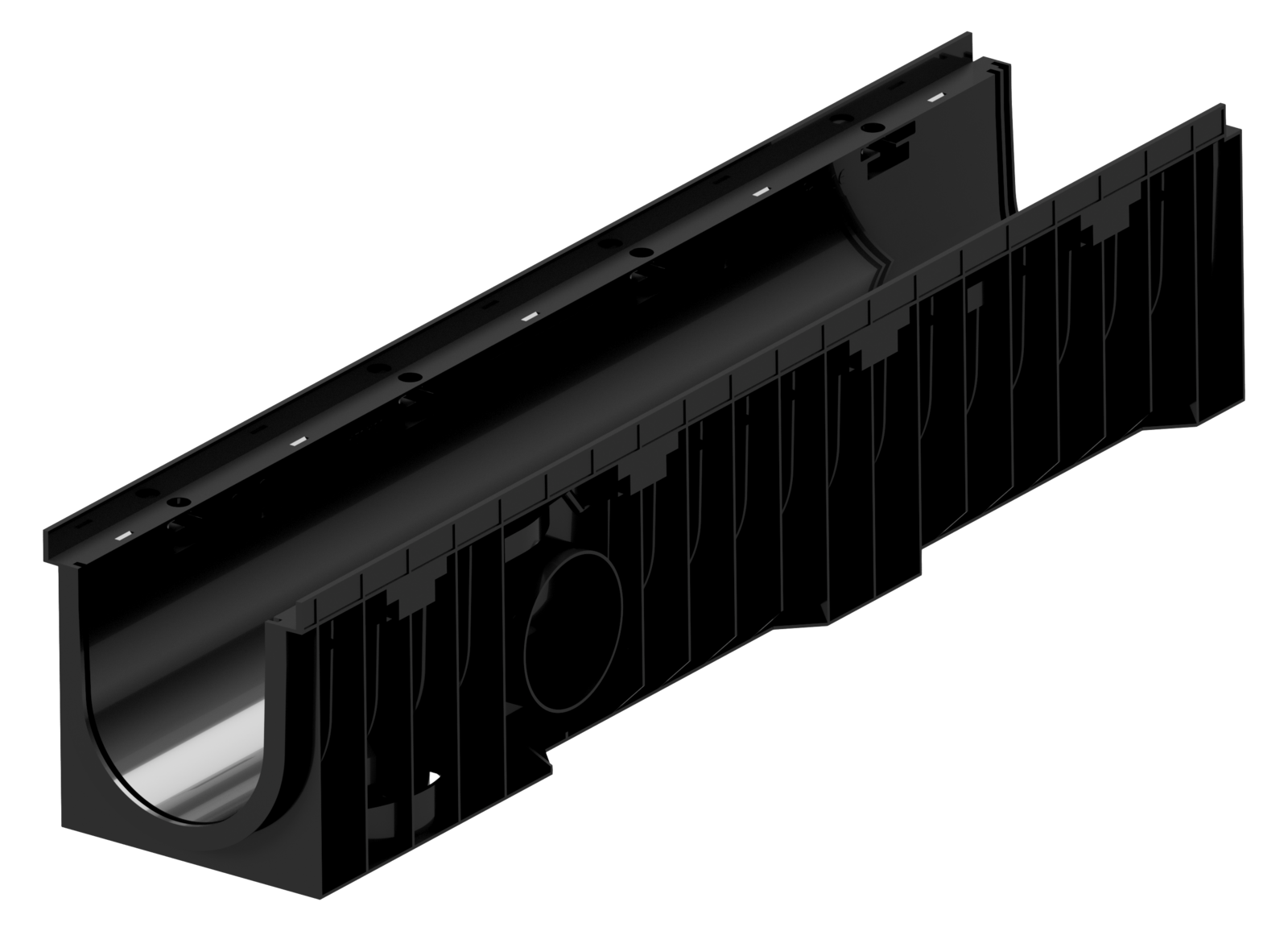

MUFLE VIP is a practical and flexible drainage system. The channel body is completely made of high-density polyethylene with an inbuilt rail that ensures protection to the gratings, even without steel.

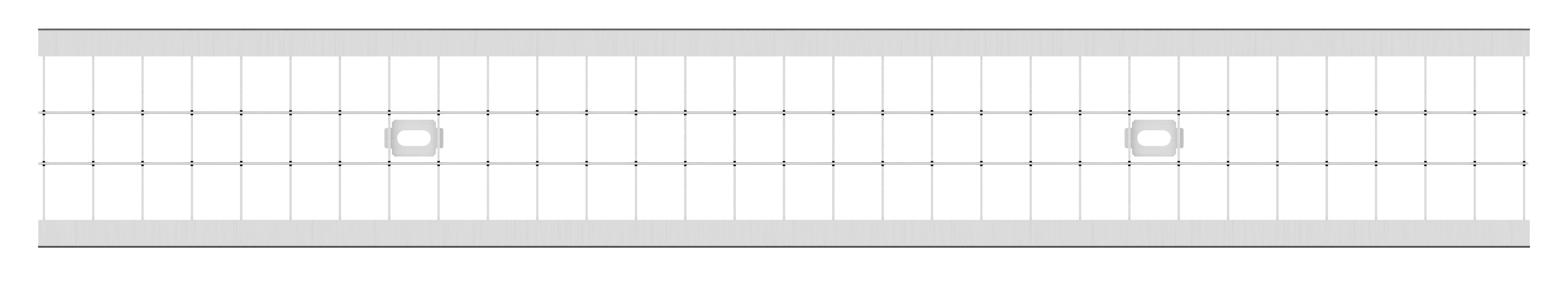

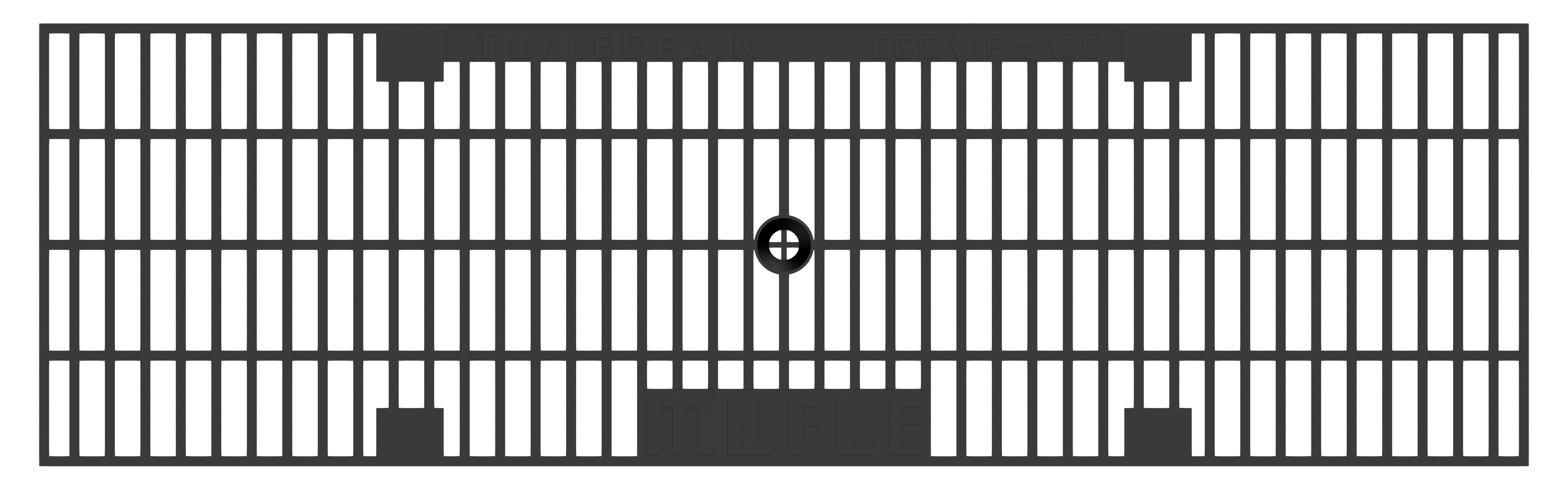

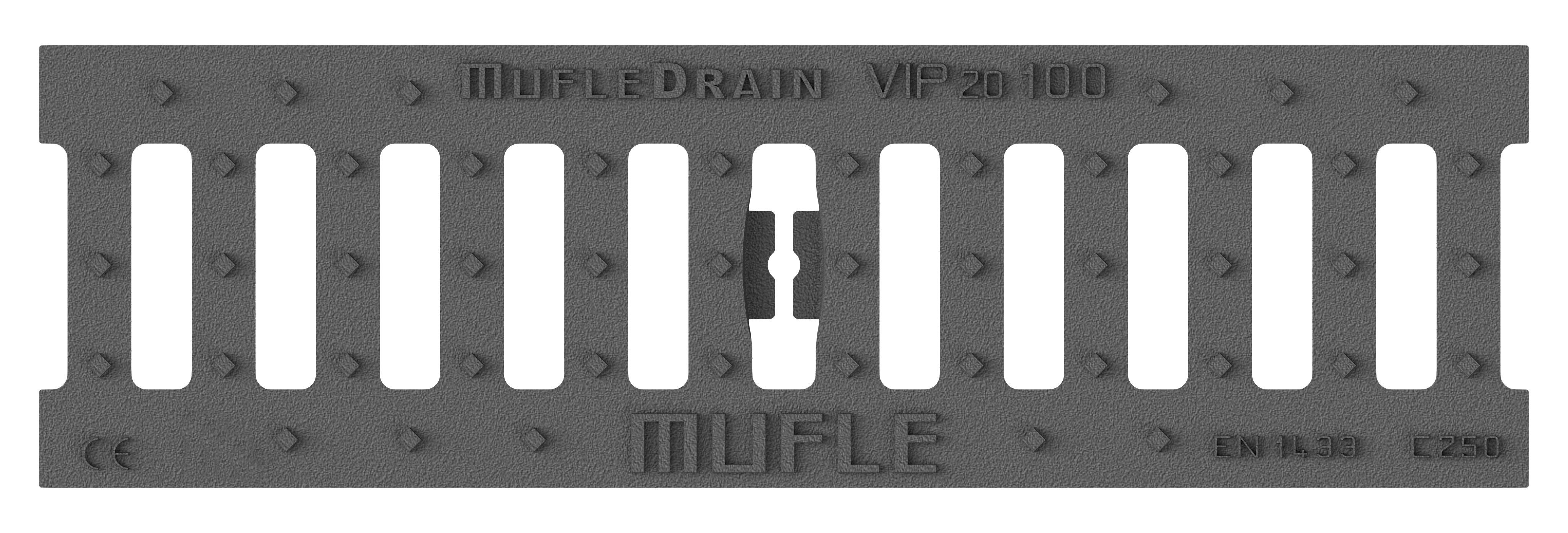

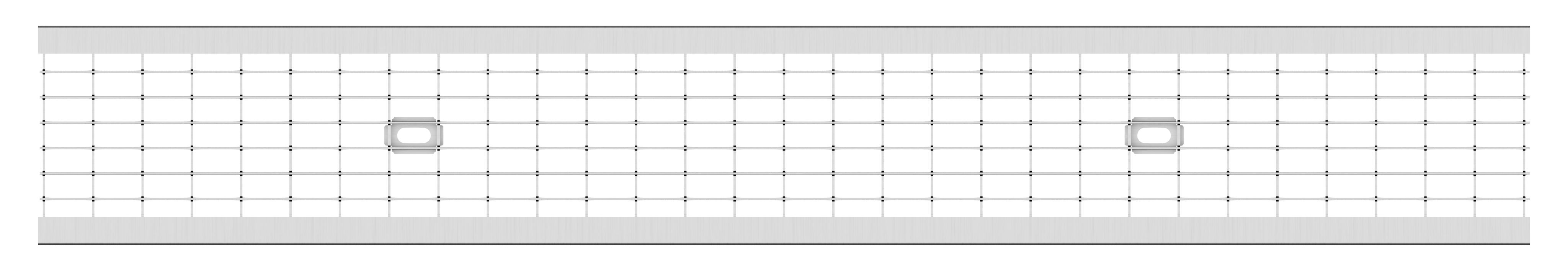

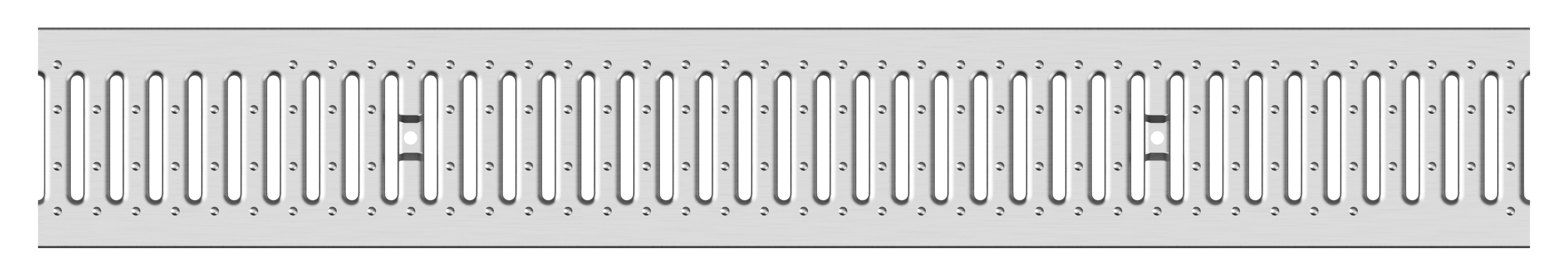

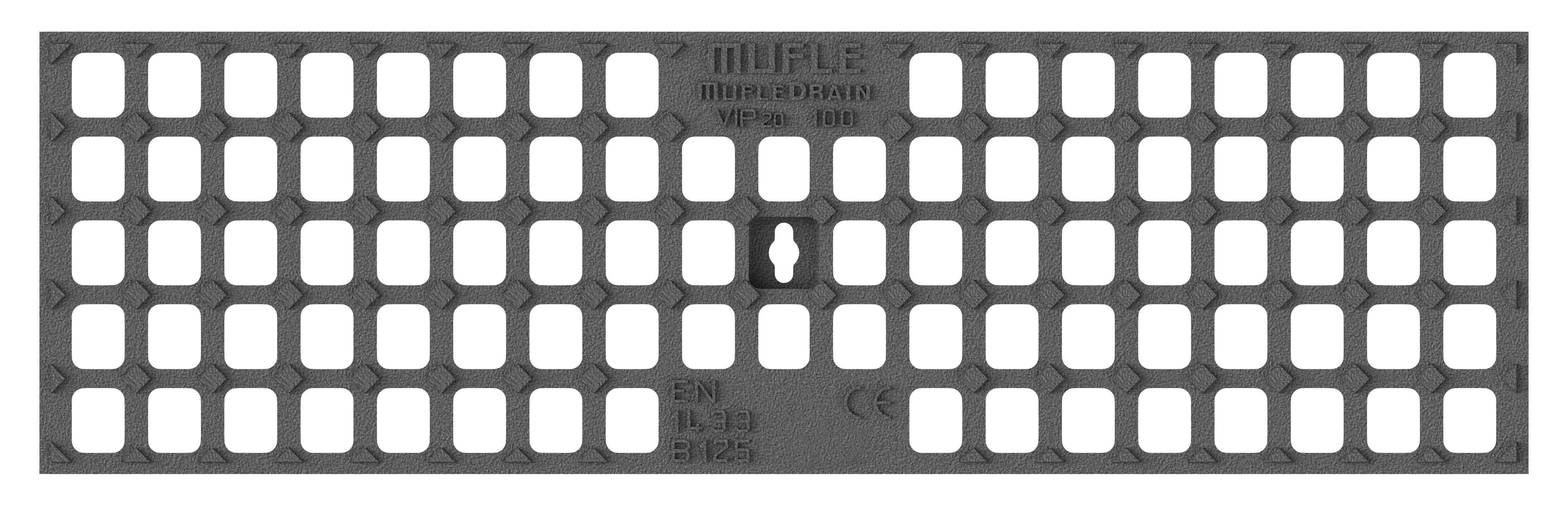

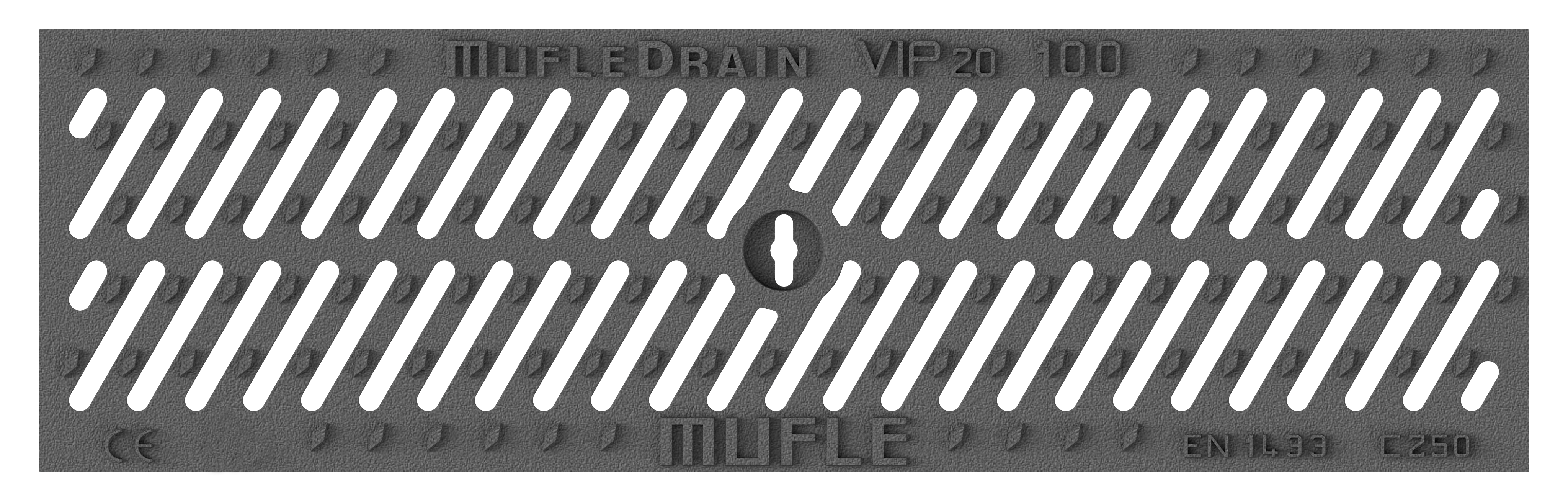

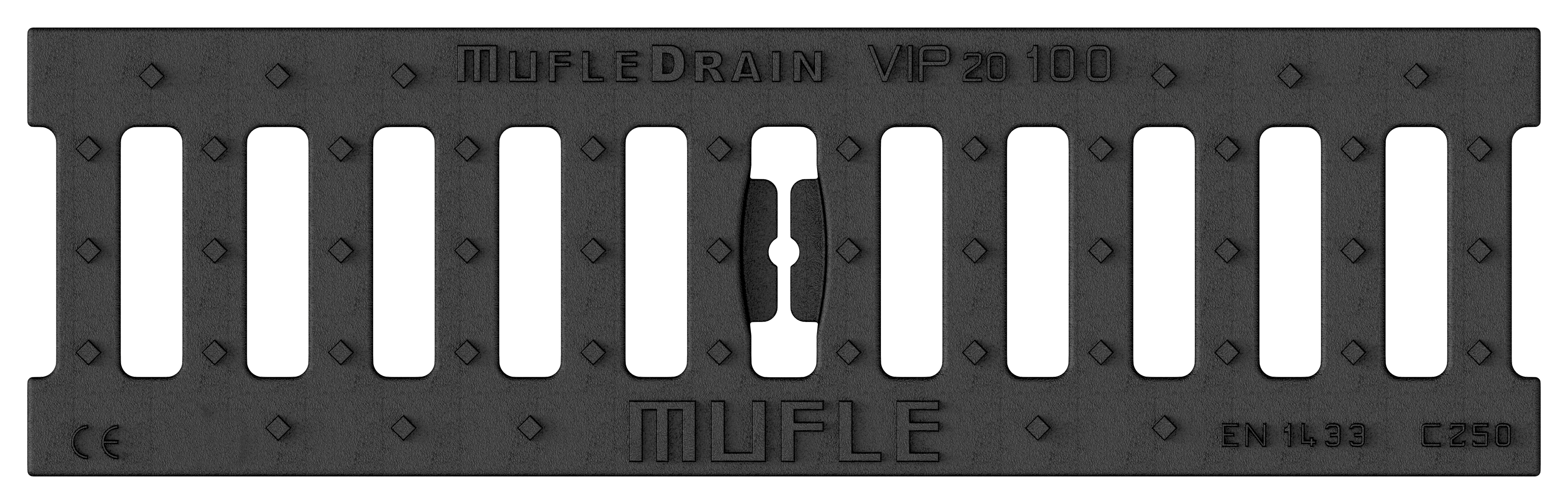

The large range of gratings makes it possible to customize the drainage line; different designs and, multiple material like galvanized steel, stainless steel, ductile iron, PP-PE and polyamide are all available.
Thanks to Brickslot grating, MUFLE VIP can be used to create a drainage line that is perfectly integrated into the surrounding. This product range is particularly suitable for civil applications, pedestrian areas and private parking areas. The MUFLE VIP C 300, with an internal width of 300 mm and 1.5 meters length, is the best solution for large surface drainage applications.

Main features

The channel body is completely made of plastic, certified for load class A 15, B 125 and C 250 according to EN 1433: 2002
With HD-PE integrated rail

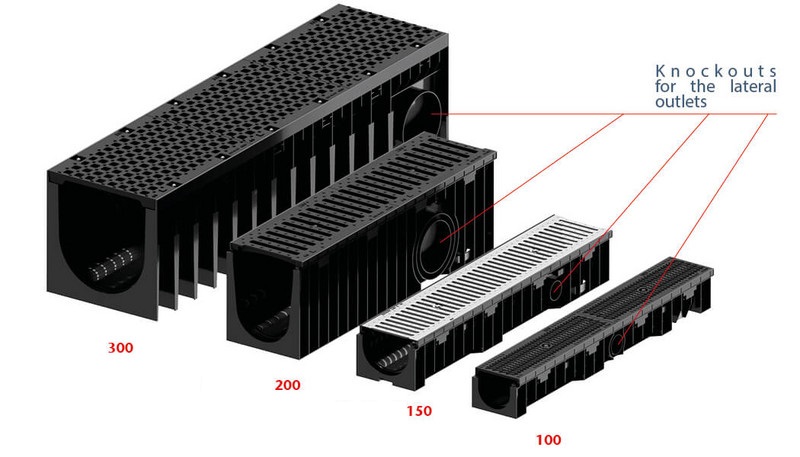

4 different nominal widths: 100, 150, 200, 300 mm
With vertical and lateral knockouts
Vertical outlet kit Ø100 and Ø110 mm for channels H 55 and H 80 mm
Sump unit with foul air trap
Bolt and bar fixing system for the gratings
Special parts for corners, T-couplings and Cross-couplings available

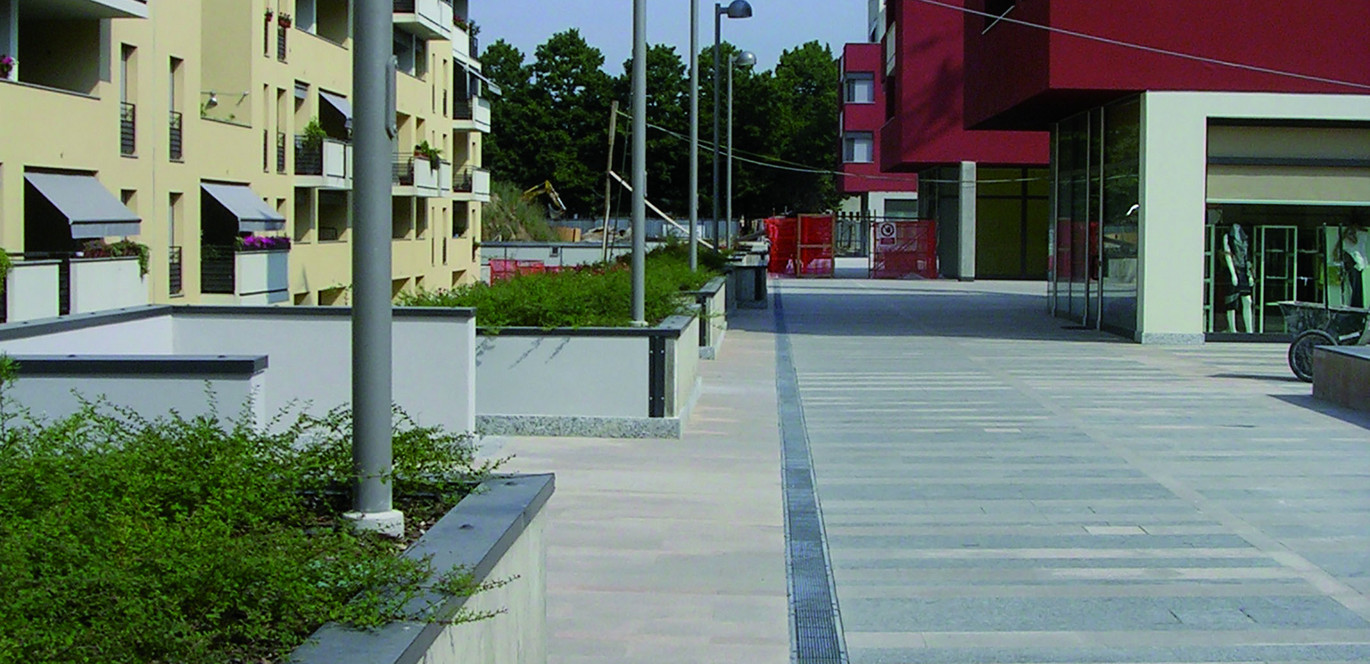

Typical applications

Residential areas
Pedestrian areas
Parking with limited and slow traffic
Pavements
Roadside drainage systems
Soccer fields
Athletics fields

DoP0002 MufleSystem VIP EN Rev6

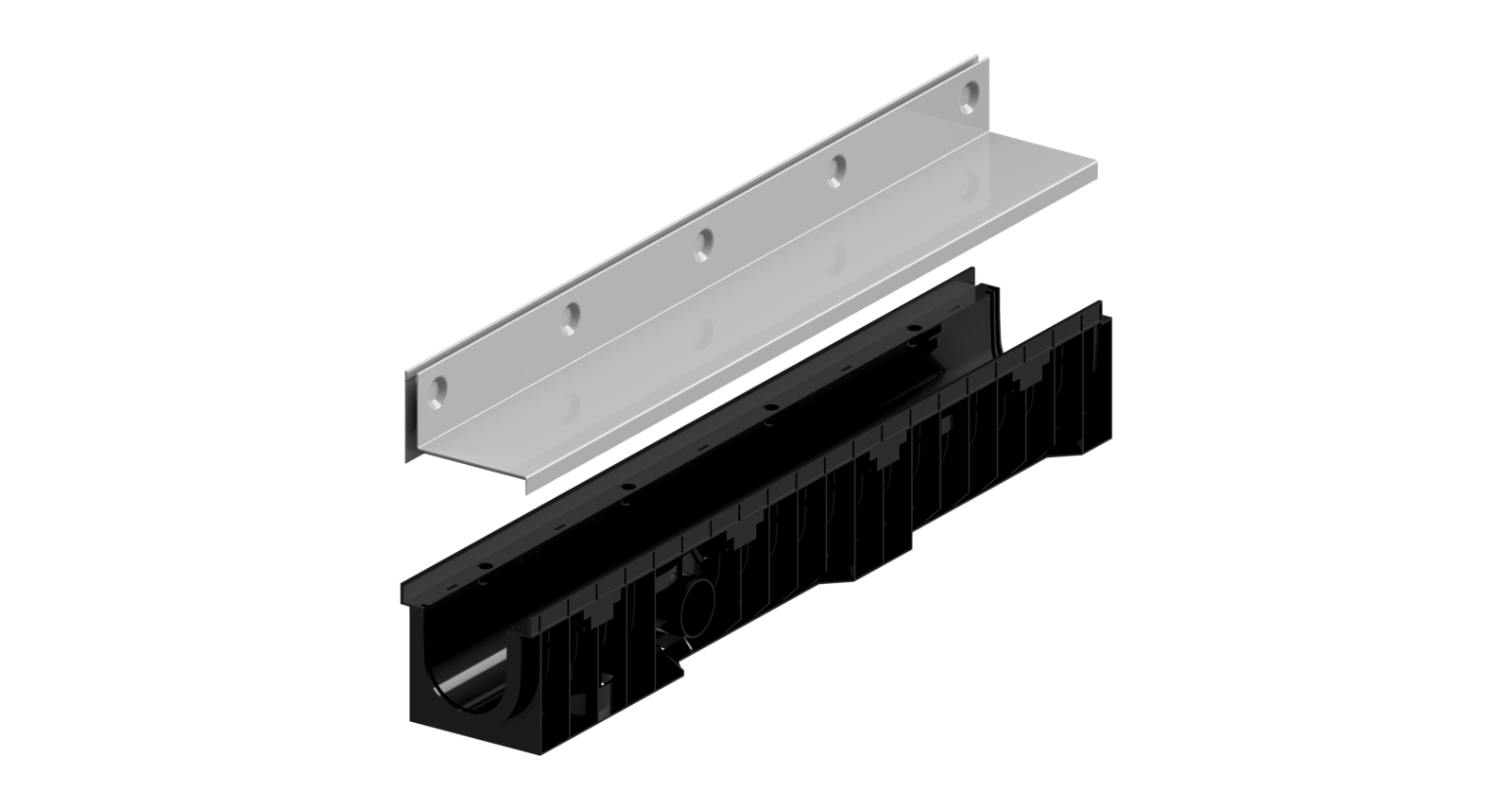

The drainage system with Brickslot “L” section represents one of the possible types of water drainage and can be considered a valid alternative to the traditional gratings.

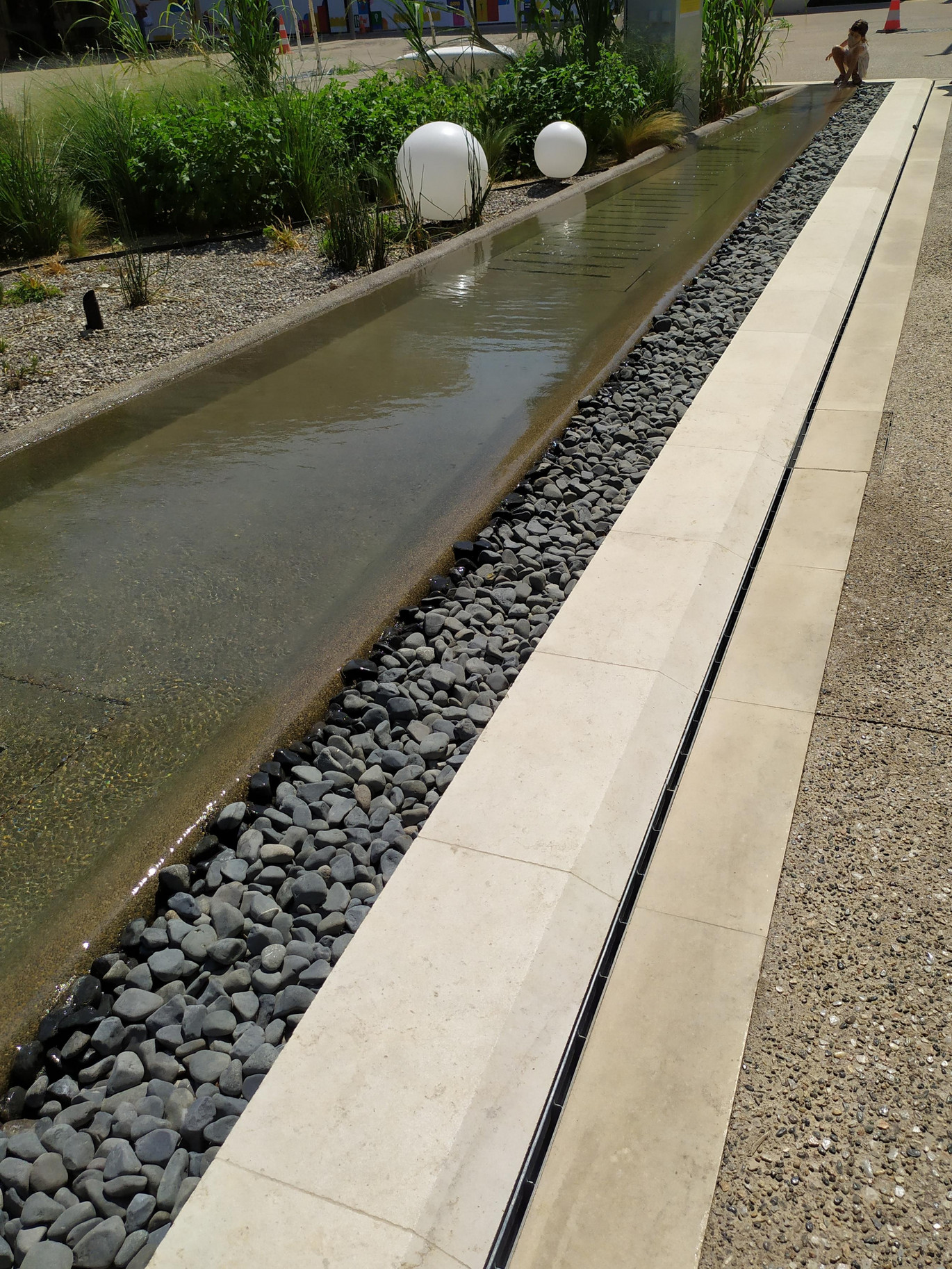

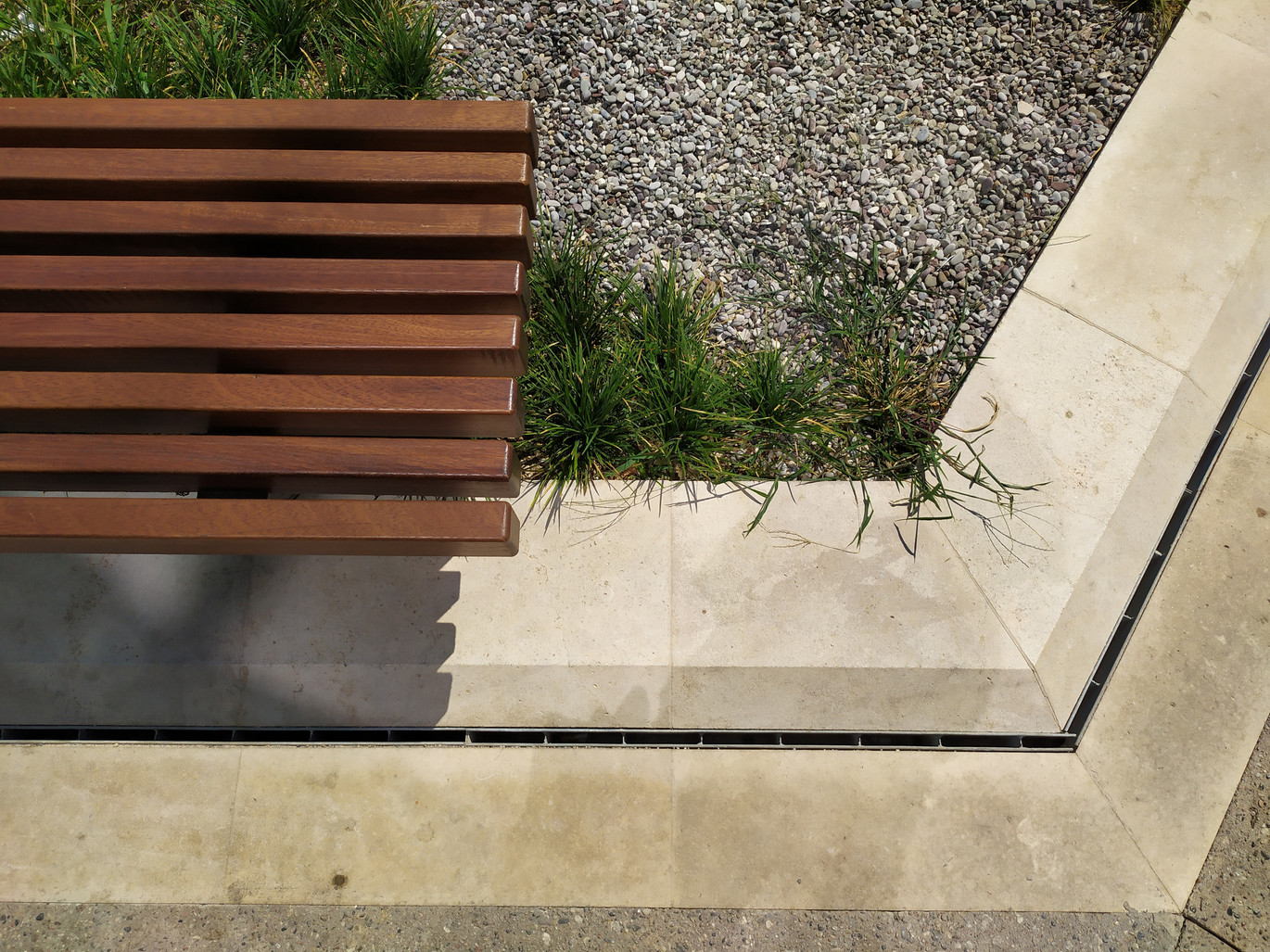

Brickslot can be installed on MUFLE VIP channels and together can create a system that appears to be a thin continuous line perfectly integrated into the surrounding, making it invisible in the architectural context or in urban landscape. Brickslot “L” section can be installed on MUFLE VIP in all its internal heights: 55,80,100 and 160mm.
Ideal for areas paved with stones, concrete and paving, all materials used in squares, fountains, private roads and places with paving blocks up to 70mm.
