- WING G 100 ductile iron square mesh D400
- WING G 100 ductile iron slot 20 D400
- WING G 100 ductile iron cover E600
- WING G 100 ductile iron slot 20 E600
- WING G 100 ductile iron slot 20 F900

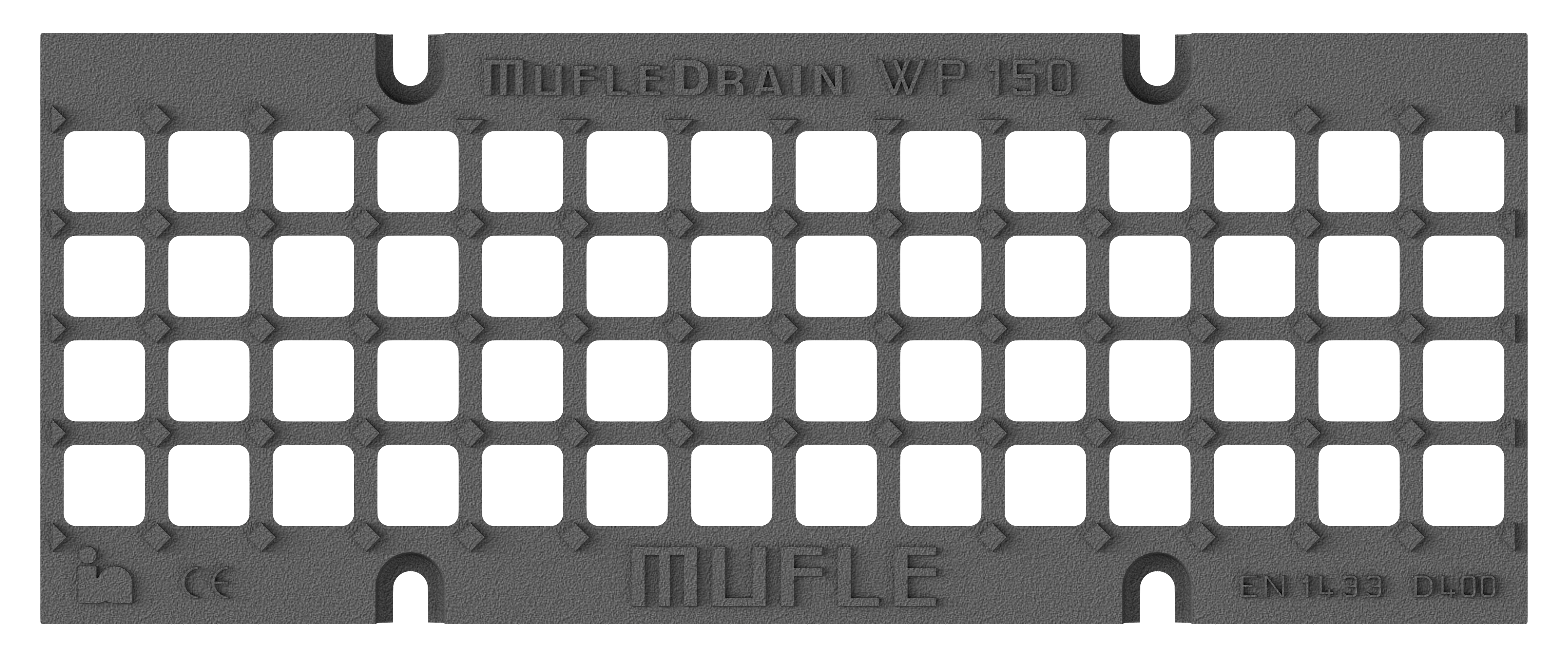

- WING G 150 ductile iron square mesh D400

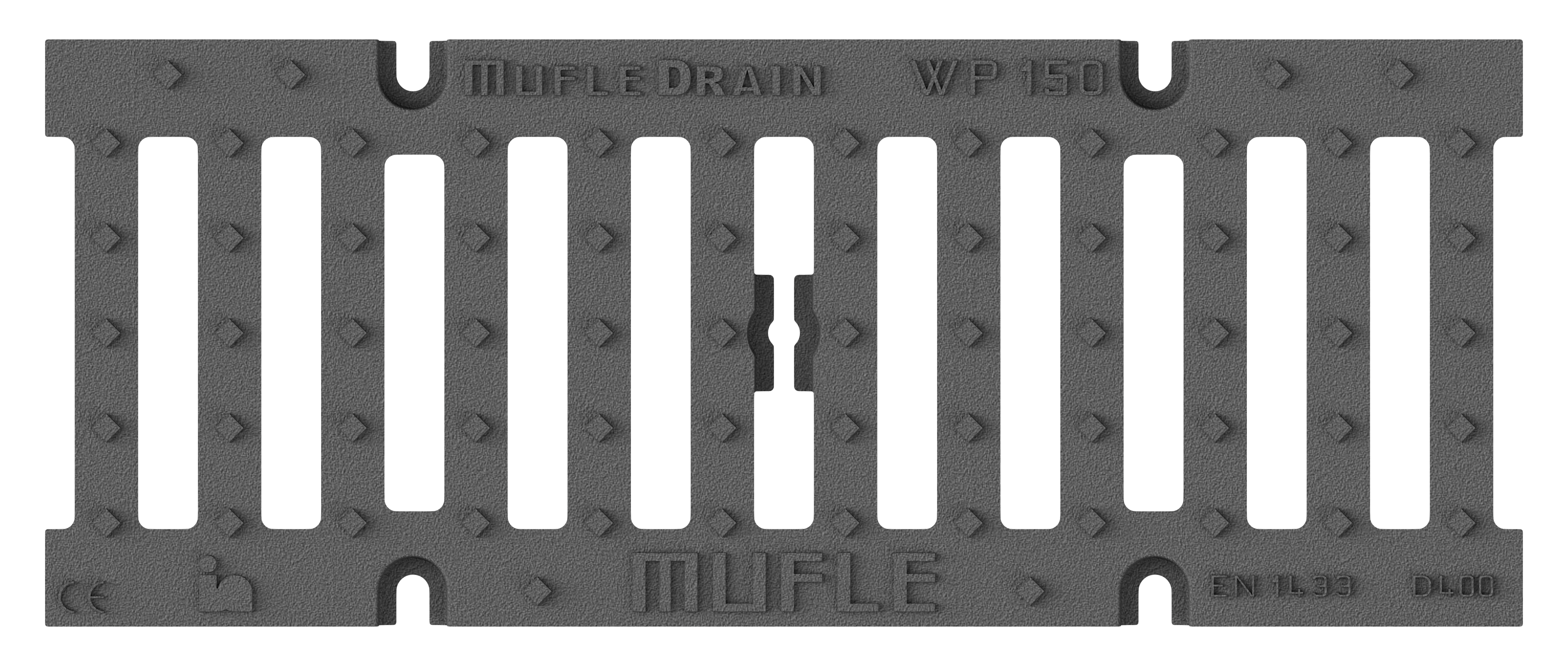

- WING G 150 ductile iron slot 20 D400

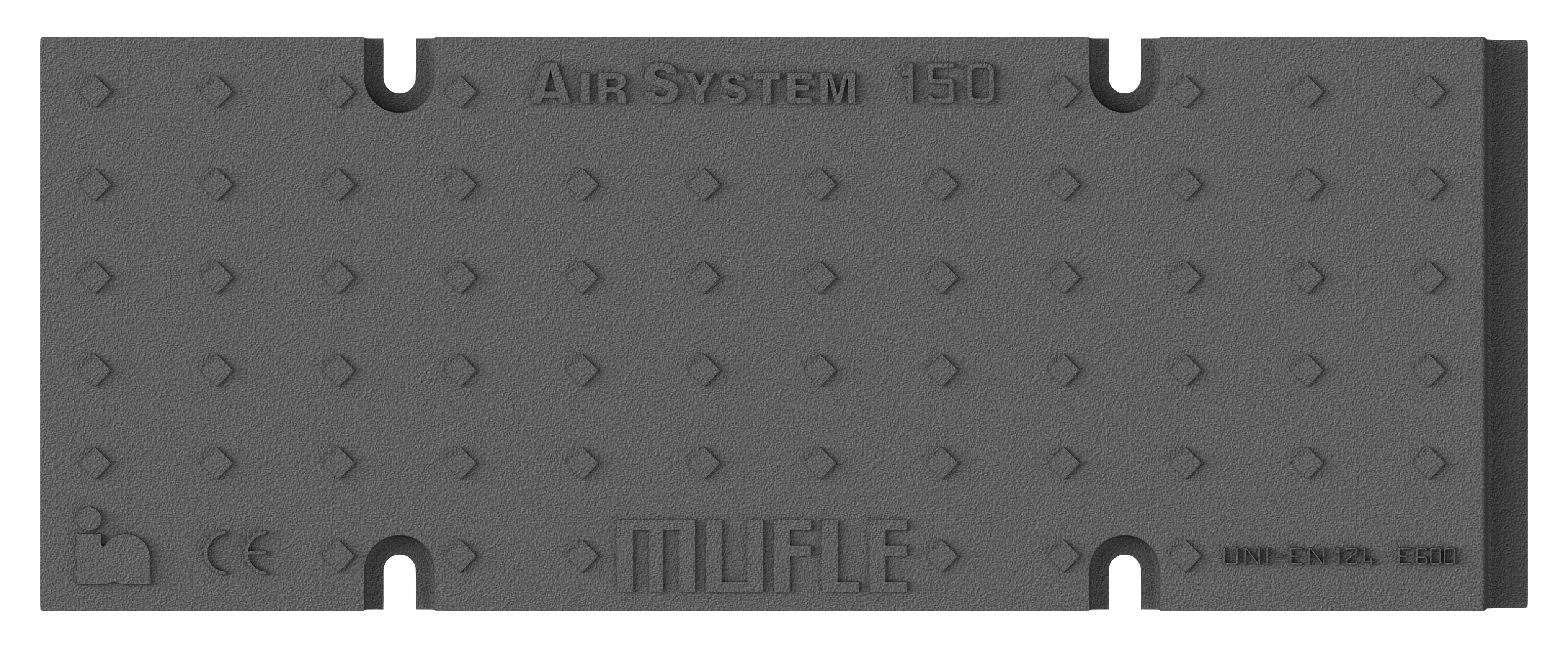

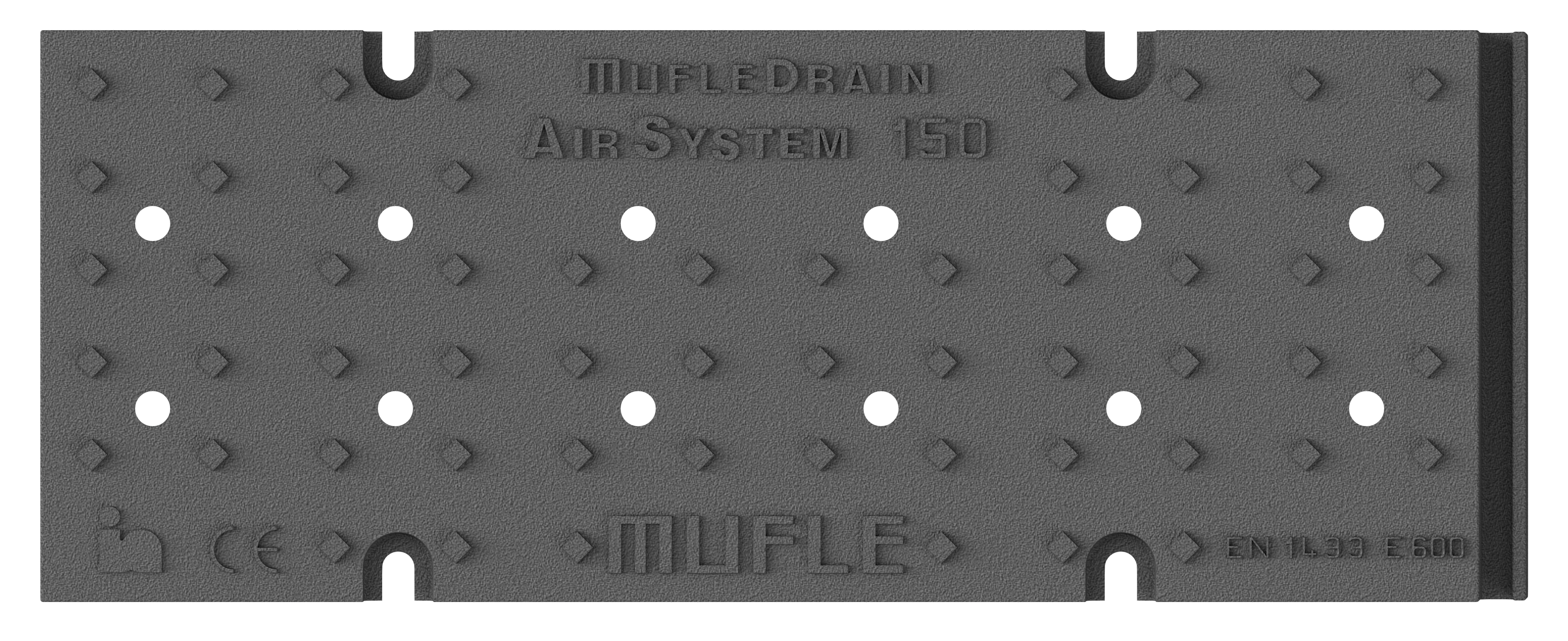

- WING G 150 ductile iron airsystem E600
- WING G 150 ductile iron cover E600
- WING G 150 ductile iron slot 20 E600
- WING G 150 ductile iron slot 20 F900
- WING G 200 ductile iron square mesh D400
- WING G 200 ductile iron slot 20 D400

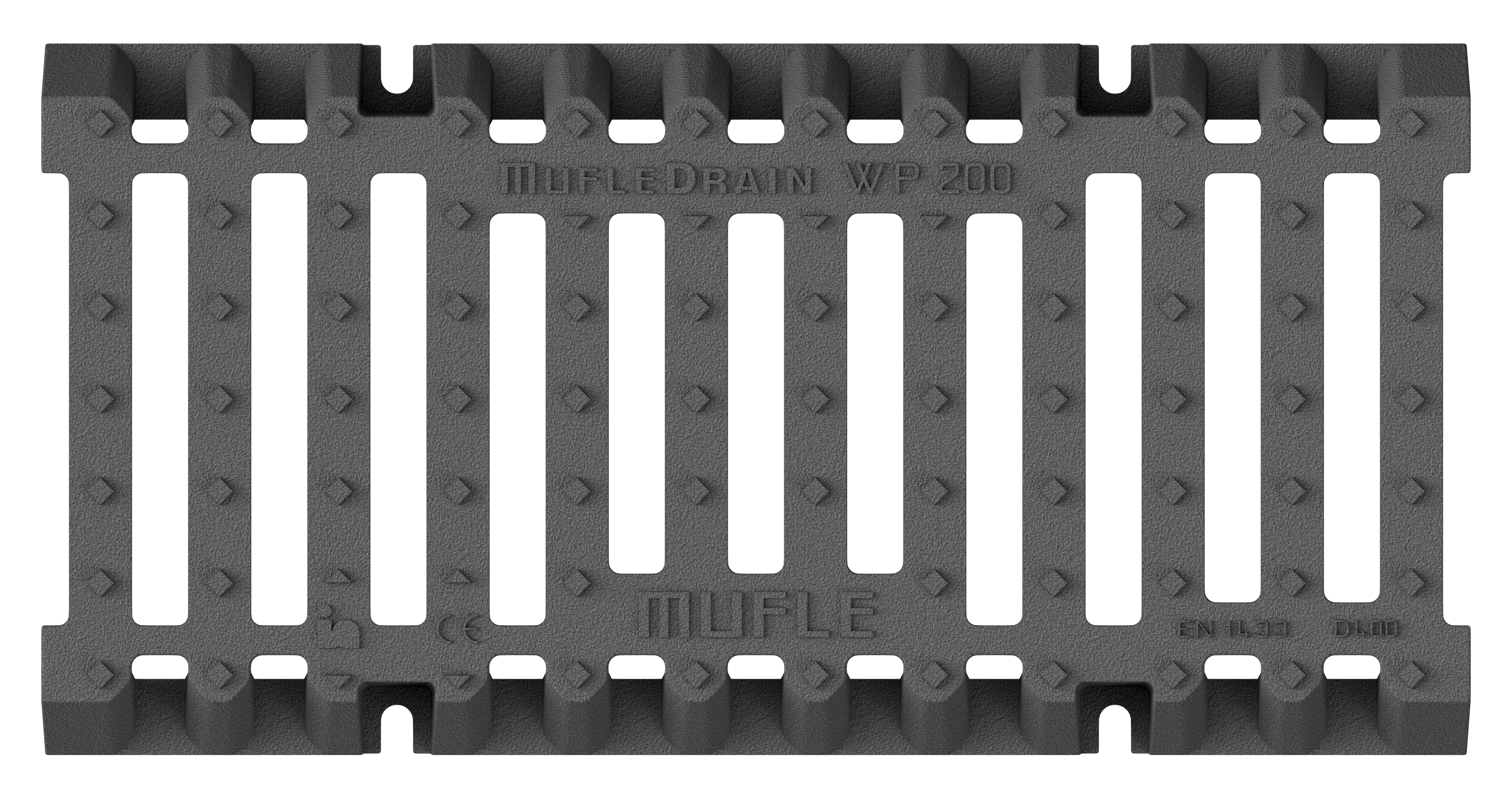

- WING G 200 ductile iron drainage asphalt D400
- WING G 200 ductile iron slot 20 E600
- WING G 200 ductile iron cover E600
- WING G 200 ductile iron slot 20 F900
- WING G 300 ductile iron square mesh D400
- WING G 300 ductile iron square mesh E600
- WING G 300 ductile iron cover E600

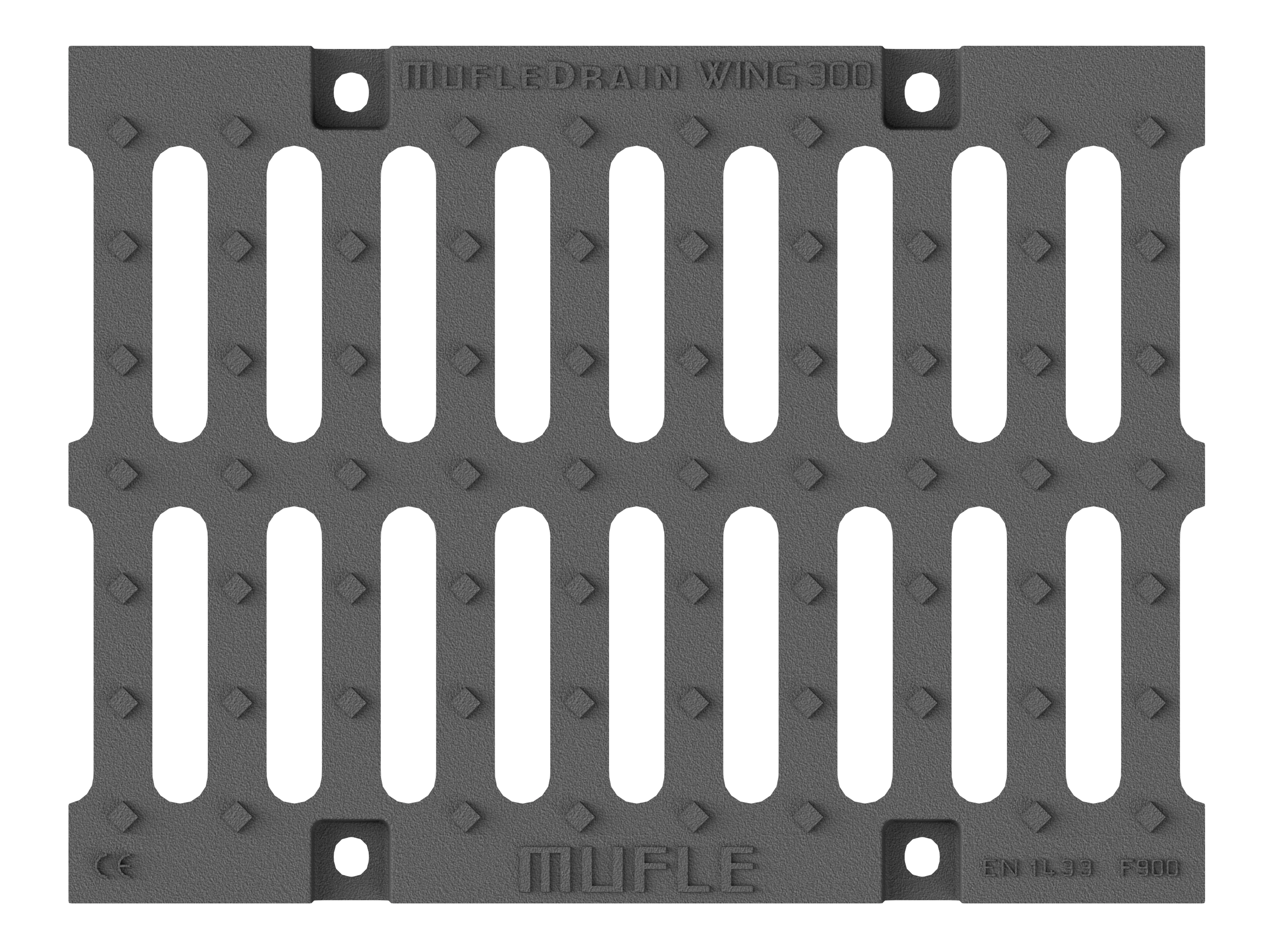

- WING G 300 ductile iron slot 24 F900

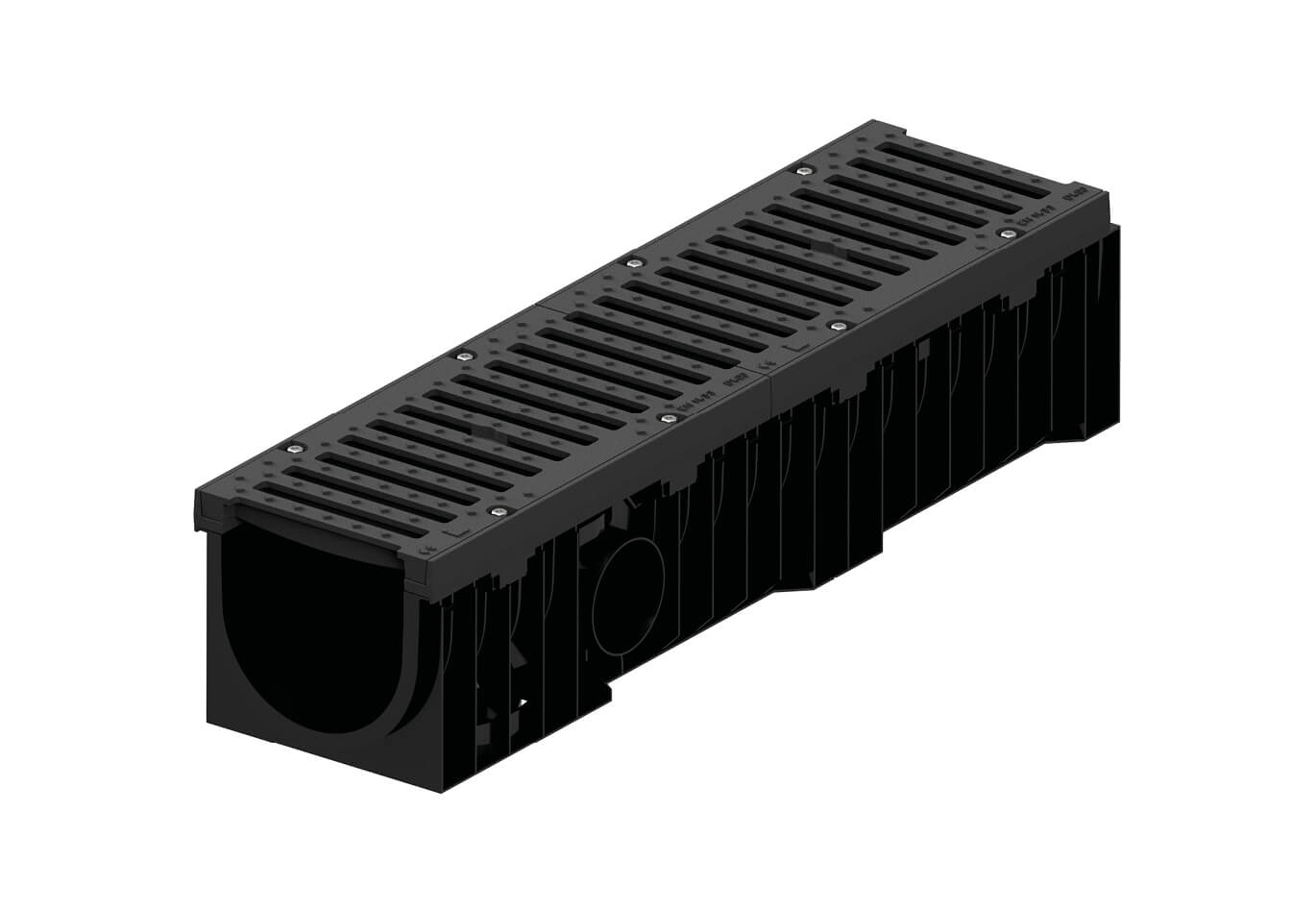

MUFLE WING G
HD-PE channel with ductile iron rail, dedicated to industrial areas
MUFLE WING G, a full product range of channels designed and produced by MufleSystem, dedicated to industrial areas, that, every day, are experienced by men and heavy vehicles intent on carrying out their fully productive activities.

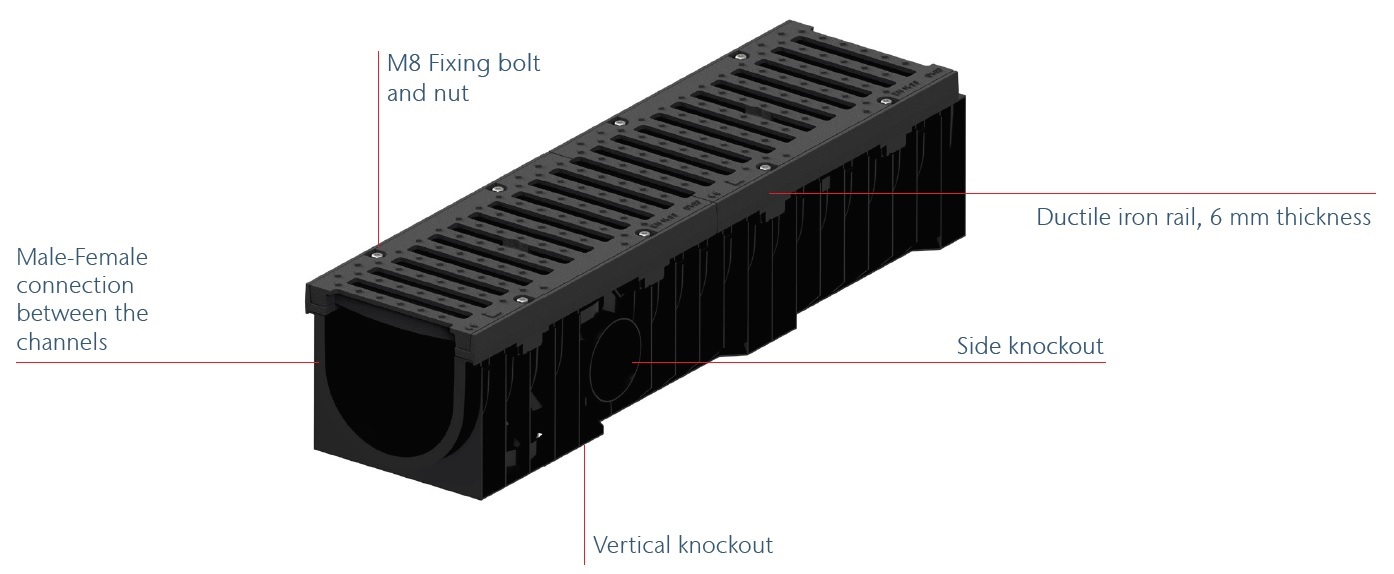

The channel body is completely made of HD-PE and the ductile iron rail is firmly integrated.
The ductile iron rail GJS 500/7 makes the MUFLE WING G unique; in addition to being extremely strong due to its generous thickness (6 mm) in the areas subject to vehicular traffic and in the support area of the grating, it is capable of challenging time with its intrinsic qualities of resistance both to traffic and atmospheric severe conditions.
The complete system is suitable and certified up to load class F 900.
Gratings are stable in place thanks to 4 M8 nuts every 50 cm.
MUFLE WING G Technical information
Main features
- Plastic channel body certified for load class D400-F900 according to EN1433:2002
- Ductile iron rail
- 4 different nominal widths available:100, 150, 200, 300 mm
- With vertical and lateral knockouts
- Sump unit with foul air trap*
- 4 bolts and nuts fixing system for each grating
- Special pieces for corners, “T” couplings and cross couplings are available on request
*Not available for WING G 200 H=250 mm and WING G 300 H=300 mm

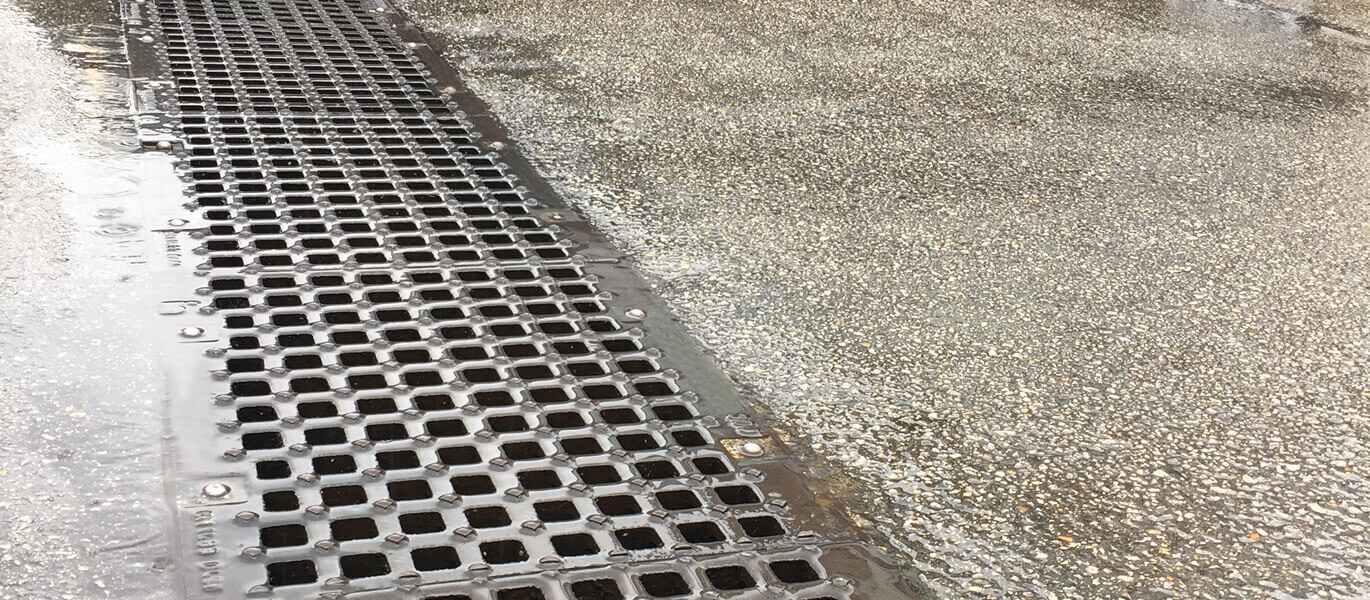

Typical applications
- Areas subject to loading/unloading of goods; container handling with transit of forklifts and truck
- Parking areas with high and constant traffic
- Roads and highways
- Viaducts
- Petrol stations
- Industrial areas
- Port and airport areas
